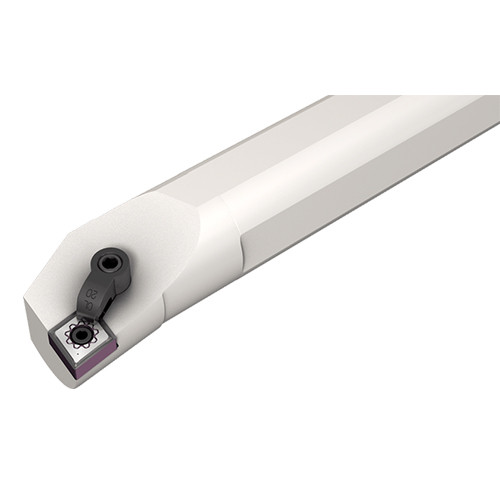

A-MCLNR 16-4
Int. Turning Tool ; 12″ OAL ; 0.906″ Shank Height ; 1″ Shank Dia. ; 12″ LF ; 1.4″ Min Bore Dia. ; Steel
Price: Log in For Price

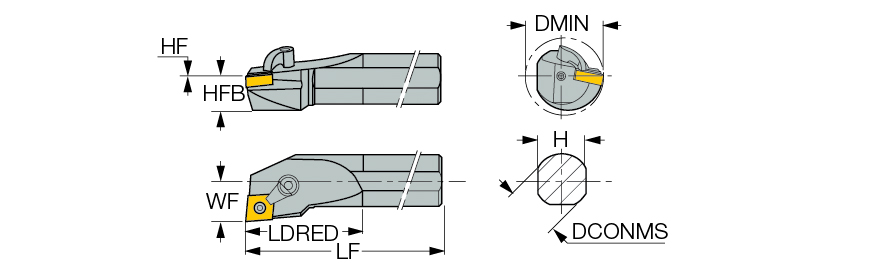

| Connection Diameter Machine Side (DCONMS) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 12″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 12″ | Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 1.57″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 0.906″ | Rake Angle Radial (GAMF) | -12 Degrees |
| Functional Width (WF) | 0.64″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CN..43.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.4″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Comlock boring bars for negative 80° diamond inserts. | Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
3.306
